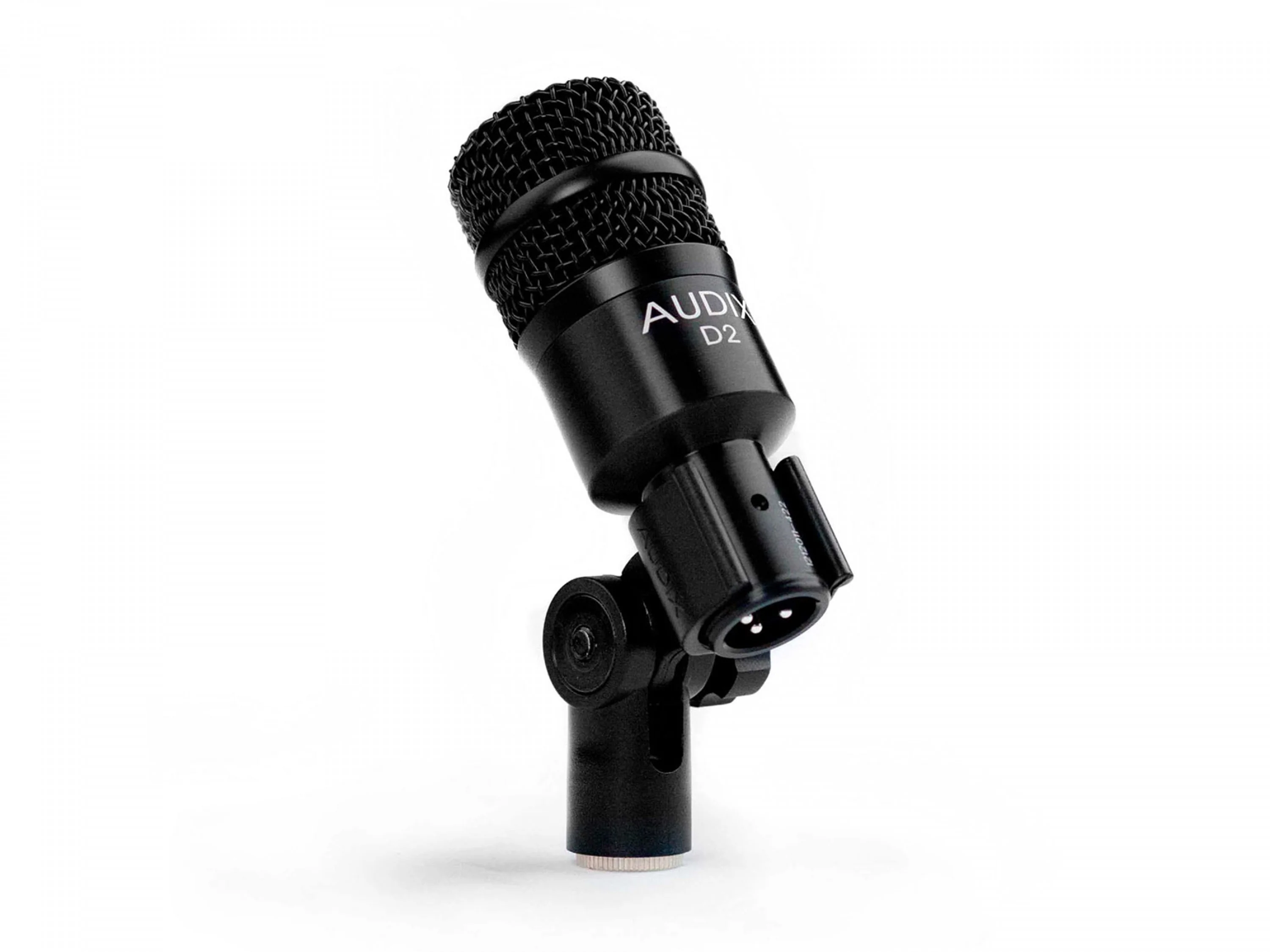

Audix D2 Hypercardioid Drum/Instrument Mic Microphone
The D2 dynamic instrument microphone is used for stage, studio and broadcast applications. It is designed with a Hypercardioid pickup pattern for isolation and feedback control and is equipped with a VLM™ diaphragm for natural, accurate sound reproduction.
The D2 is an excellent choice for miking instruments with a percussive nature such as rack toms, congas, saxophones, guitar cabinets and brass. Transformer less design, low impedance and balanced output insure that the D2 Hypercardioid instrument microphone will perform interference-free.
What's in the Box?
- 1 x D2 Instrument Microphone
- 1 x DCLIP Microphone Clip
- 1 x P1 Carrying Pouch
Product Specifications
General
- Transducer Type; Dynamic
- Frequency Response: 68 Hz - 18 kHz
- Polar Pattern: Hypercardioid
- Output Impedance: 280 ohms
- Sensitivity: 1.2 mV / Pa @ 1k
- Capsule Technology: VLM Type B
- Off-Axis Rejection: >30 dB
- Maximum SPL: ≥144 dB
- Power Requirements: None
- Connector: 3-pin XLRm
- Polarity: Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Physical & Dimensions
- Materials: Finish Black Hard Coat
- Weight: 128 g / 4.5 oz
- Length: 100 mm / 3.9 in
